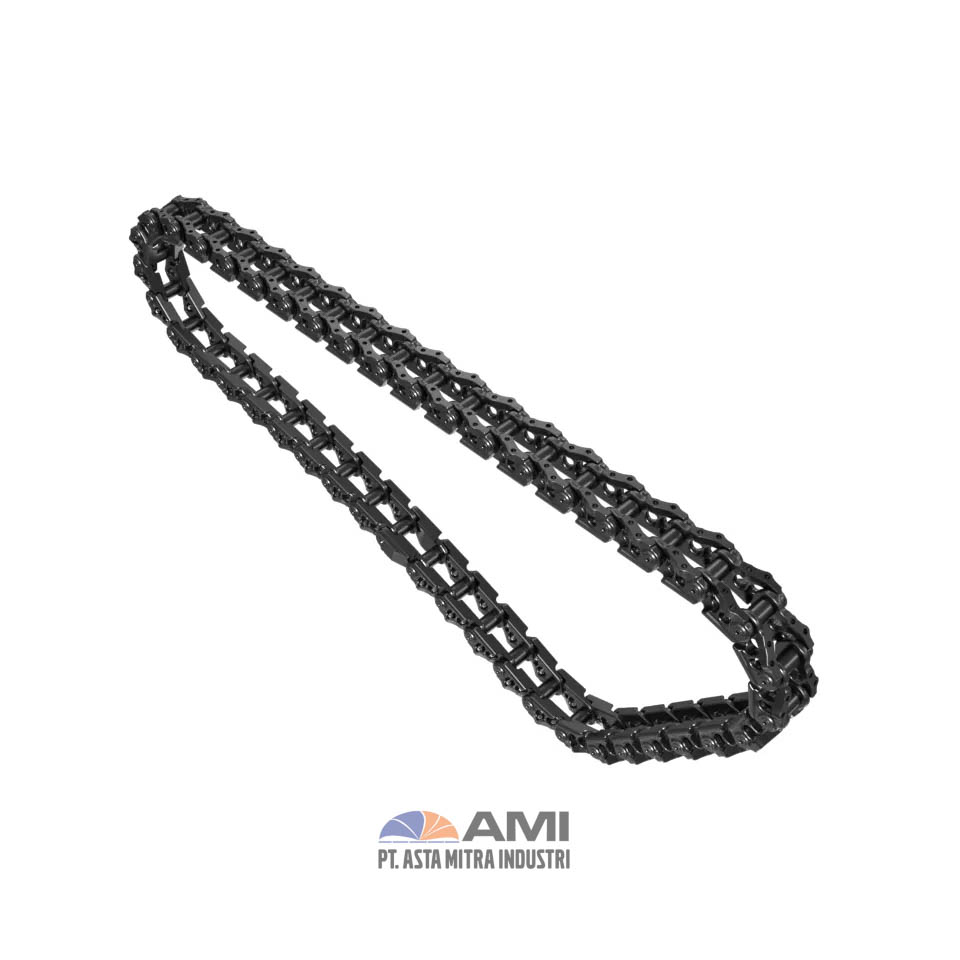

Rakitan Sambungan

Rakitan Sambungan Cat® merupakan suku cadang undercarriage alat berat. Spesifikasi: Jenis Seal dan Pelumas: SALT; Tipe Sambungan Master: Master 5 Gigi; Sensor Keausan: Tidak.

Spesifikasi Teknis: - Jenis Seal dan Pelumas: SALT - Tipe Sambungan Master: Master 5 Gigi - Sensor Keausan: Tidak - Ulir Baut Track: 0,875 - Ulir Baut Master: 0,875 - Pin Retention System: PPR2 - Track Pitch (in): 8,5 - Shoe Bolt Hole Spacing A (in): 2.48 - Shoe Bolt Hole Spacing C (in): 8.035 - Rail To Bushing OD (in): 1.709 - Bushing OD (in): 3.117 - Link Outside Spread (in): 9.327 - Number of Sections: 44 - UC System: GD, GD - Rail To Pin Boss OD (in): 1.858 - Bolt Hole Diameter (in): 0.914 - Shoe Bolt Hole Spacing B (in): 5.752 - Rotating Bushing Track (Rbt): No - Link Inside Spread Sprocket (in): 3.862 - Pin Length (in): 9.823 - Link Height (in): 5.827 - Link Inside Spread Roller (in): 4.142

Kompatibilitas: Belum diverifikasi berdasarkan PIN/nomor seri alat
